Control, Networks, Energy and Storage

Control, Networks, Energy, Storage

HELPED's communication, fluid and energy networks are mobile, integrated assemblies and sub-assemblies that are ruggedized and reliable.

Generally in the form of containers or containment units, they house a number of functions, including providing a hub for Hertzian communications between responders and operators, ensuring the camp's power and water supply, and managing storage facilities.

The spinal cord and brain of the system, the crisis and management control center is at the heart of the system.

DeepCom

TRAAK (Gicat member)

TRAAK is a French start-up specialised in custom-made geolocation and biometric trackers for constrained environments. With expertise in geolocation (outdoor, indoor, relative) and communication (BLE, UWB, GSM, RF, sat.), we ensure that high quality data is generated and communicated where it is most needed.
To address underground and deep-indoor communication challenges, we have developed DeepCom, an innovation that transmits data bi-directionally to and from the surface, deployed for emergency responders.

Muststore fuel or water storage and transport tanks

MUSTHANE (Gicat member)

Muststore flexible tanks are a very smart means to store or transport water or fuel. When empty the tanks require a very small space and are very light weight. Their design mitigates the development of bacteria and the contamination of the liquid stored inside comparing to rigid tanks. The tanks are static or can be towed full behind a vehicle or transported under a helicopter.

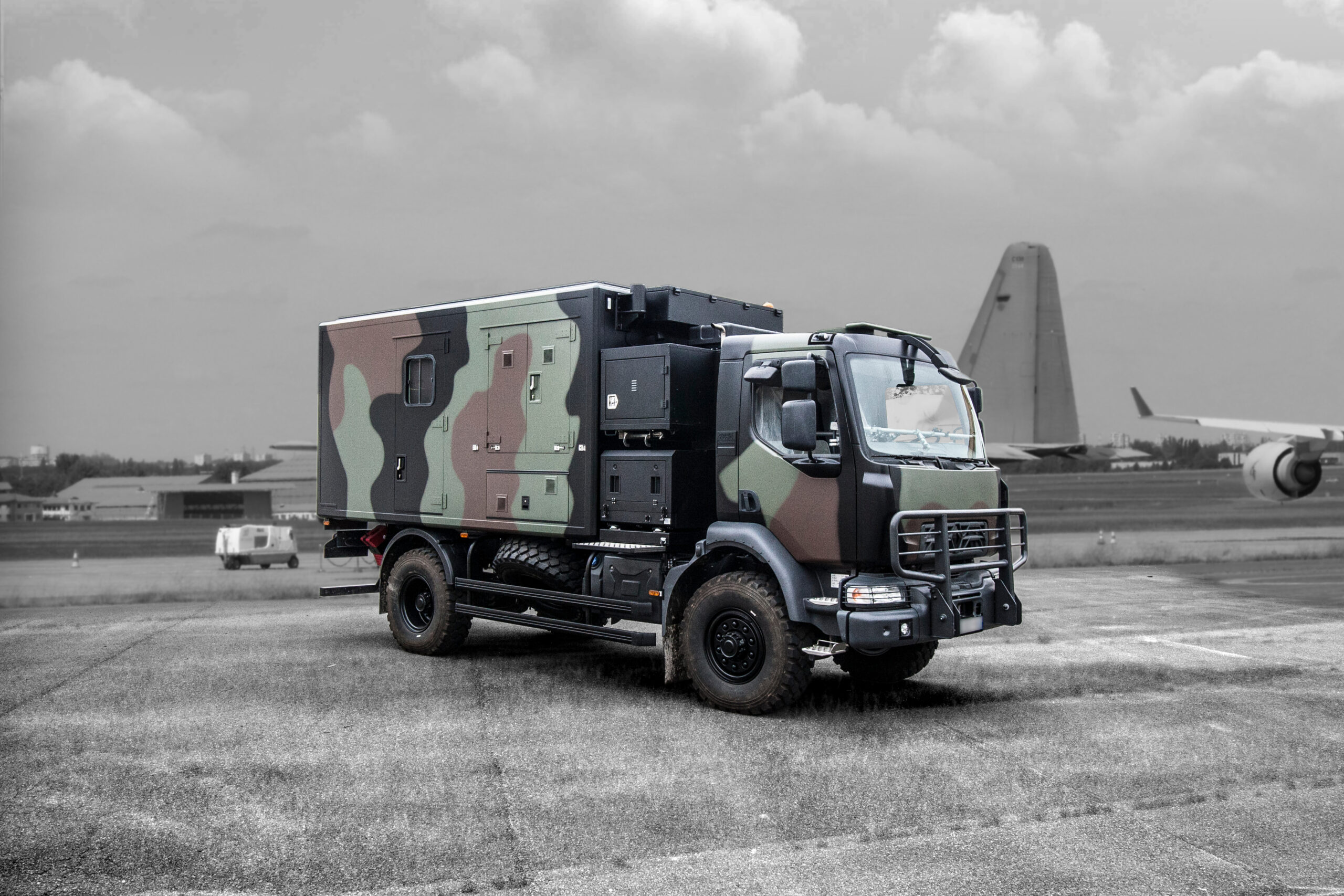

COMMAND POST

TOUTENKAMION Group (Gicat member)

This off-road mobile equipment can be used as an advanced command post, a surveillance post, a control post to get closer to the operational theatre. Autonomous in energy (generator, battery or solar), it is operational immediately. It is pre-disposed to receive telecommunication means. To ensure the safety of the staff, the cabin can be equipped with interior and exterior roll bars, a manhole…
The truck cab also offers the possibility of integrating monitoring control equipment during the transport phases.
By transforming the cab, the truck can be transported by plane and by boat easily.

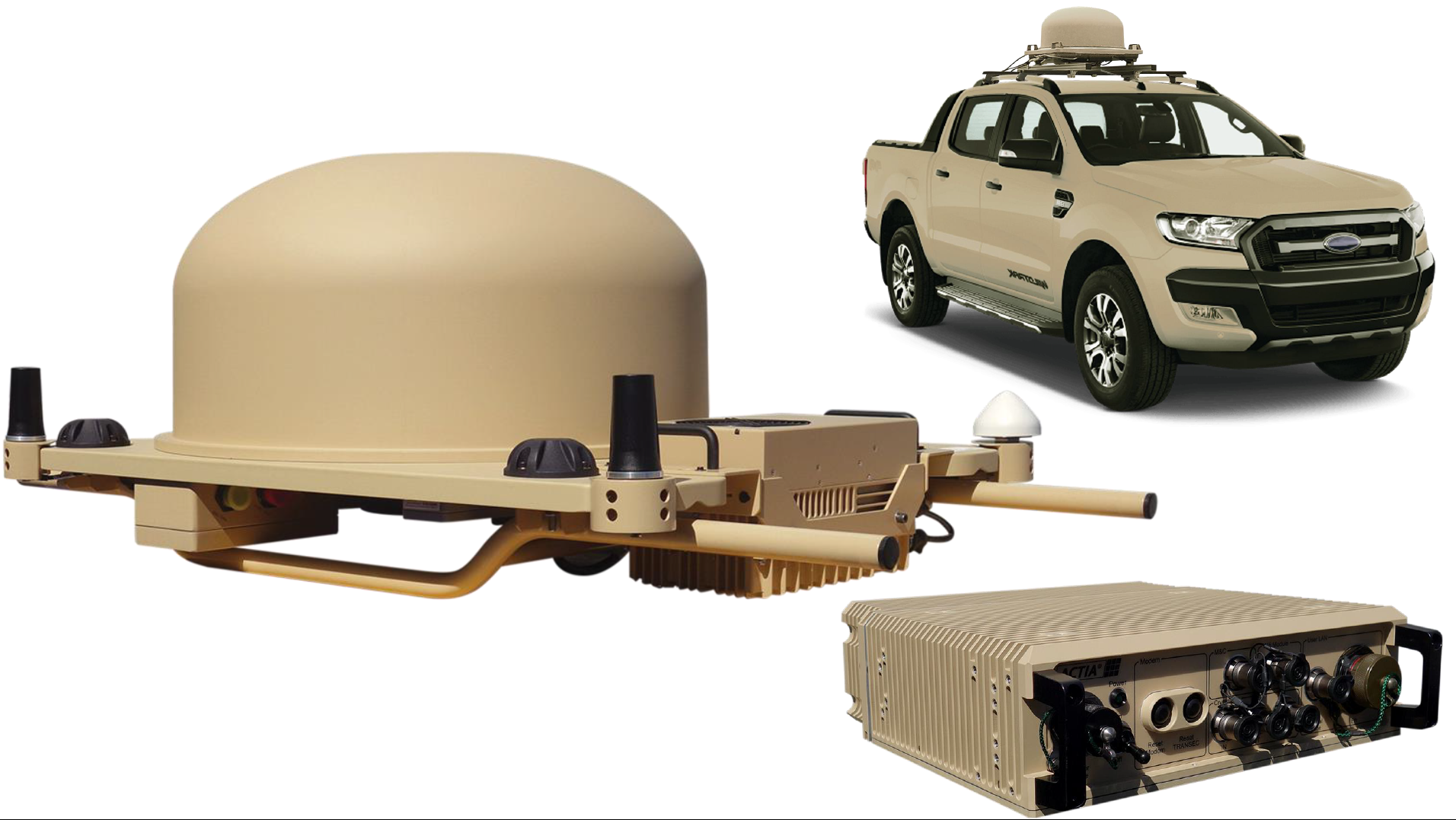

DEKA040OTM

ACTIA Telecom (Gicat member)

Compact SatCom terminal integrated on a vehicle for “On The Move” type mobility use. Consists of an antenna and RF subsystem mounted on the roof of the host vehicle (protected
by a radome). The supervision and baseband equipment are also integrated into the vehicle. The antennas associated with this type of terminal have an equivalent diameter of approximately 0.3m (“low-profile” type antenna) with pointing and automatic tracking allowing a satellite link in motion, including on uneven ground: Tactical High speed terminal: off-network reception, off-infrastructure: communications resilience.

ACTIA Telecom (Gicat member)

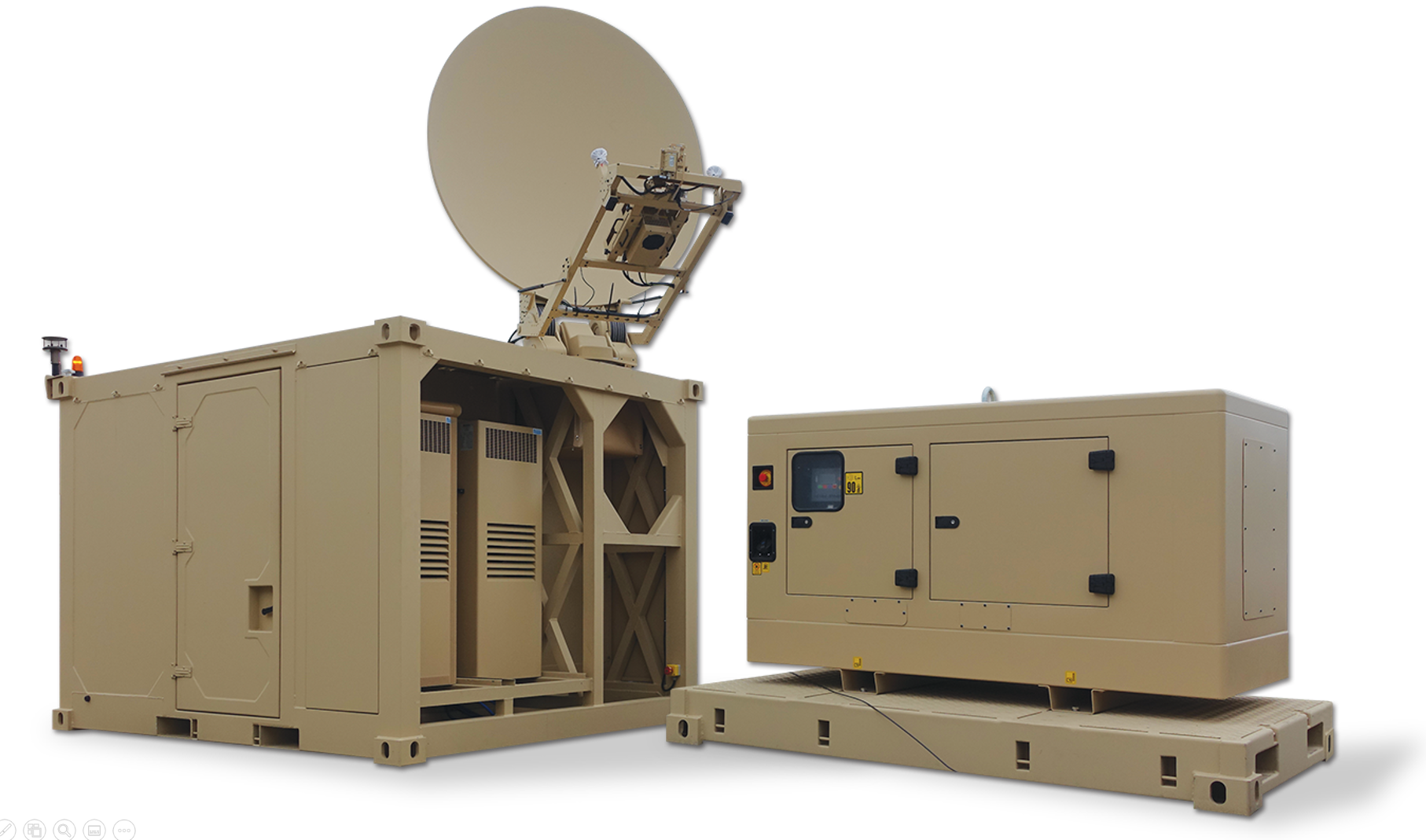

DEKA180T

All-in-one SatCom terminal easily transportable by truck, train, ship or plane. This type of terminal (ISO format) integrates an air-conditioned mini shelter which houses an antenna
subsystem and the RF, as well as all the supervision equipment and the baseband. The antennas associated with this type of terminal can have diameters of 1 m up to 3.90 m with automatic pointing. Function: Theater HUB, drone anchor, broadband terminal in On The Pose configuration, communication resiliency, etc.

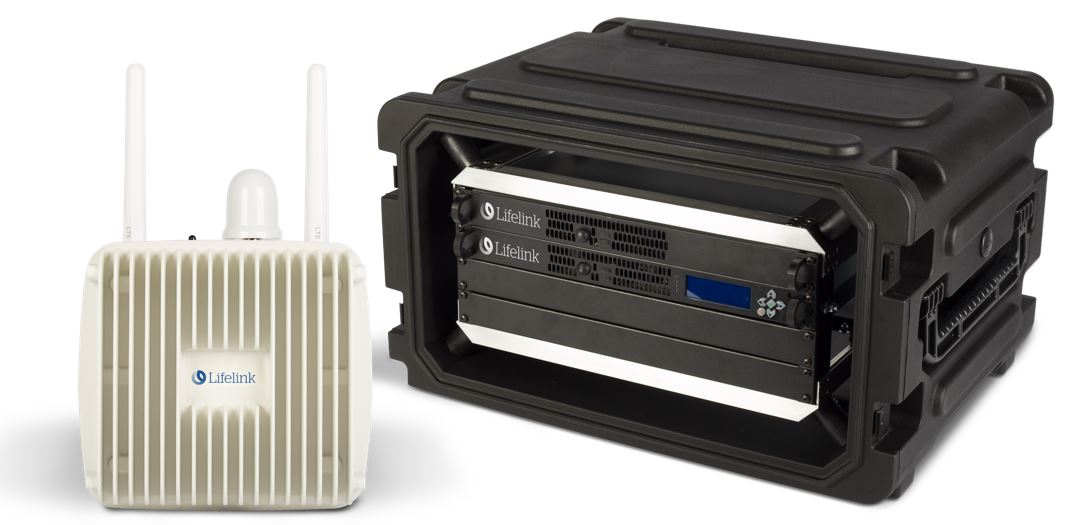

LIFELINK

ATOS (Gicat member)

LIFELINK makes it possible to quickly deploy 4G/5G field communications during a crisis. This increases the safety and efficiency of personnel who can thus communicate immediately.
Lifelink is composed of secure 4G/5G private wireless networks, which are easy to deploy in macro or micro version.
In addition, devices can ensure communication resilience by switching seamlessly between public and private networks.
And mission-critical communication applications deliver instant messaging, dispatching, logging, and tracking features.

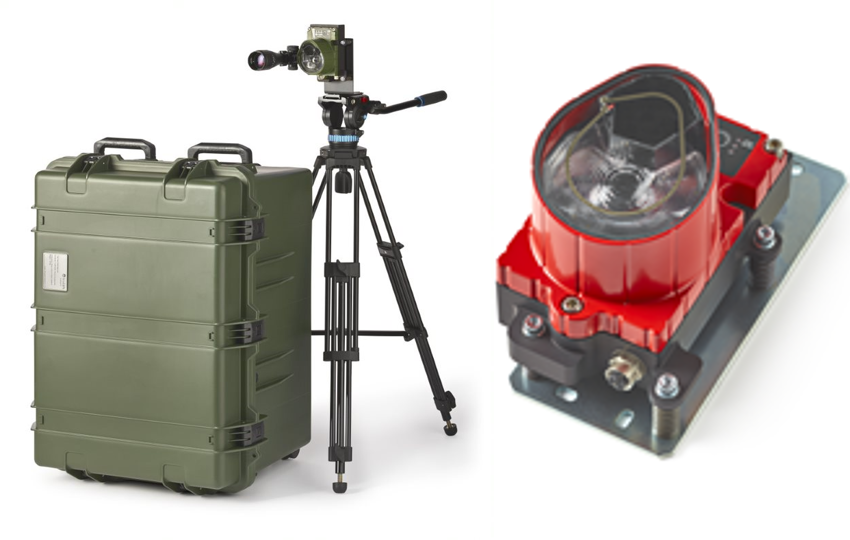

Fast Field Data Link

MILESYS (Gicat member)

The MILESYS 300 Fast Field Data Link powered by Trulifi provides a wireless LiFi connection between two points with data rates up to 940 Mbit/s and a maximum operating
distance up to 300 meters, depending on the setting and distances.

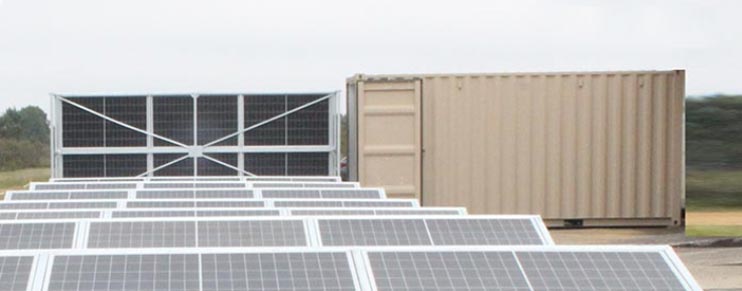

Hybrid Power Plant

KAPI (Gicat member)

Modular energy containers for deployment in operational areas :
– 3 energy sources synchronized : photovoltaic power, batteries and genset
– 20 ft ISO photovoltaic container with sliding deployment on rails : up to 216 solar panels
– Photovoltaic panels equipped with anti-reflective glass for use in airport areas
– Safety Extra Low Voltage (SELV < 80 V = 0 risks) Up to 72kWc of photovoltaic power per container

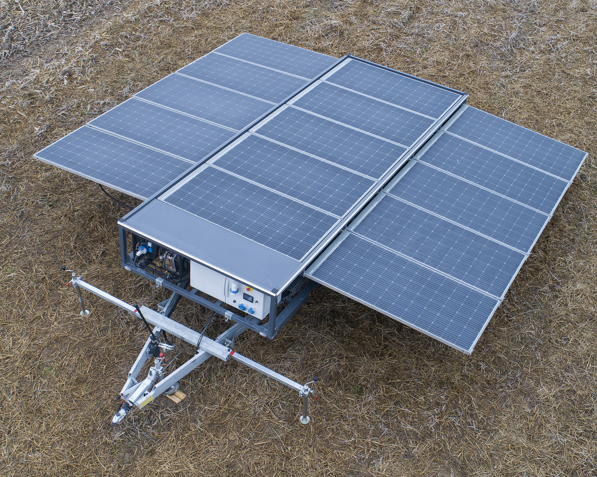

Trailer-Watt®

ECOSUN Innovations

The Trailer-Watt® is a mobile solar trailer that is towable using a civilian vehicle and which can be deployed in 5 minutes. It is fitted with 15 modules. The solar trailer is the ideal solution for military camps, for construction sites, for water pumping in agriculture, etc. Made from high-quality European materials, this durable structure is equipped with flexible photovoltaic modules capable of being deployed in no time at all.

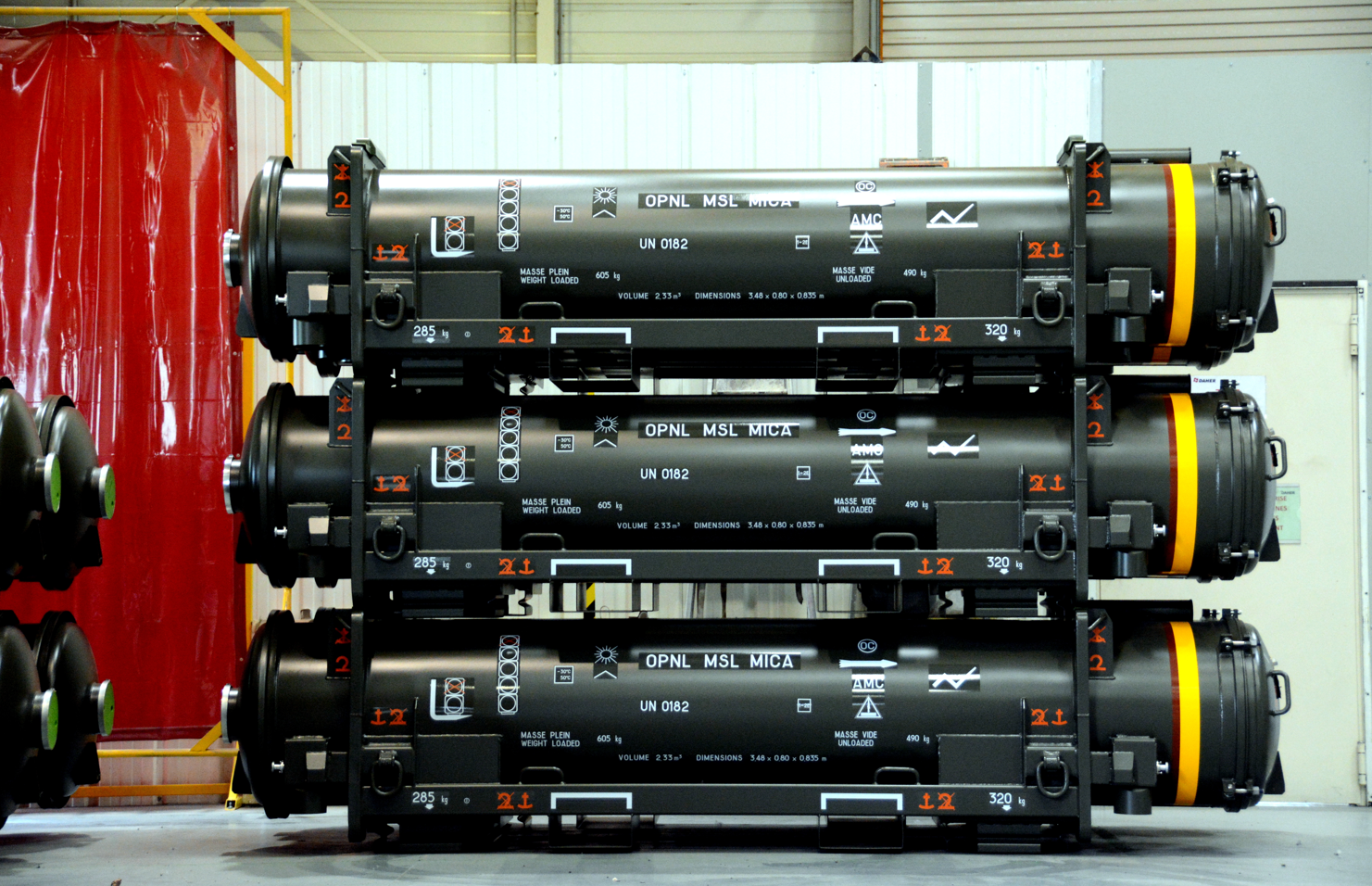

CONTAINERS

DAHER (Gicat member)

Daher designs, manufactures and integrates standard and special containers for the transportation, handling and storage of strategic equipment in complete safety and in full compliance with current European military standards. More than 200 types are available in a range of materials that offer tailor-made solutions and meet specific customer needs.

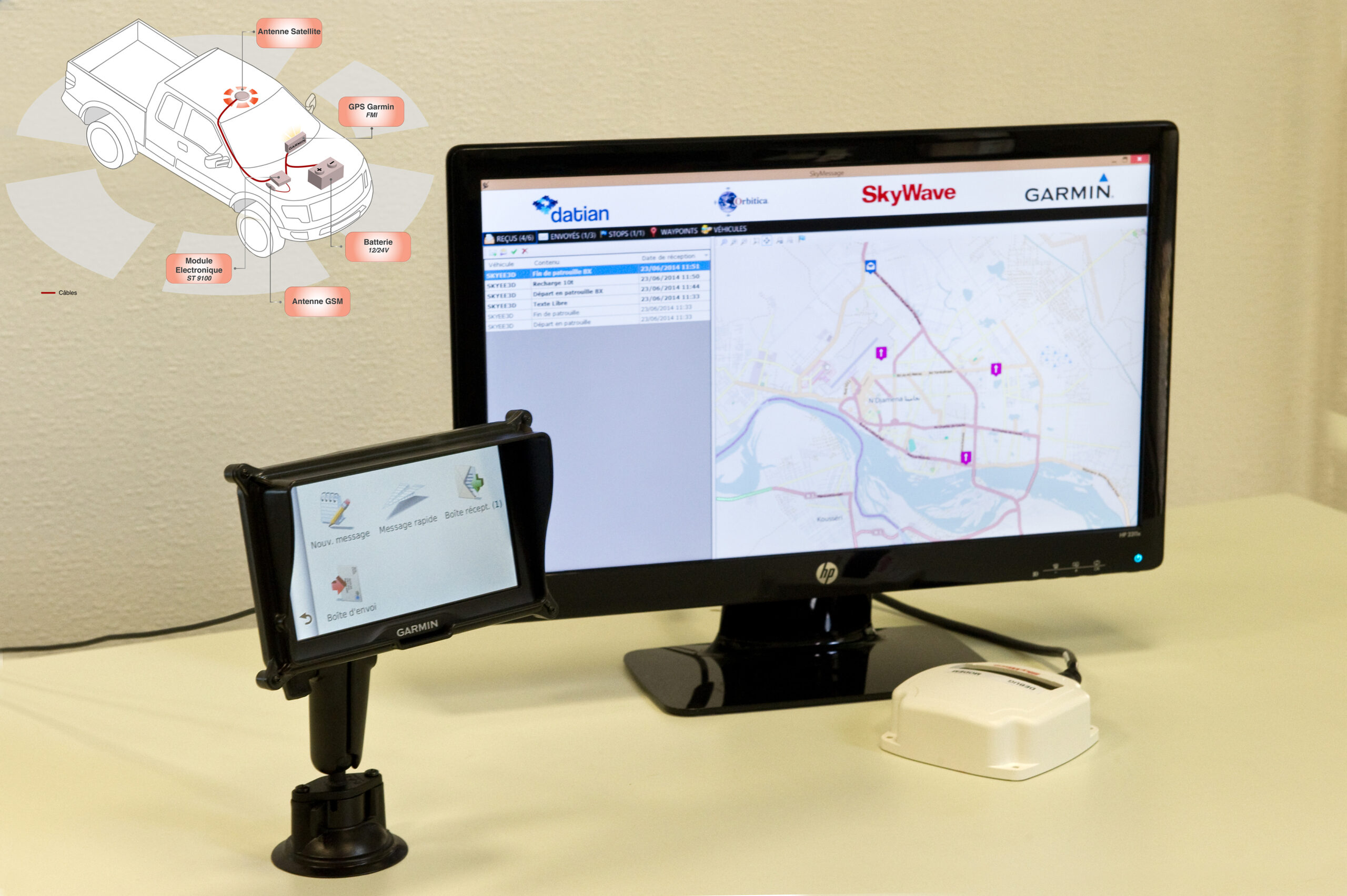

GEOMSAT

ORBITICA

Messaging, Guidance and Tracking vehicule solution by satellite.
Military – Civil Security – Private Security – Industry.
   – Transmission and reception of messages.
   – Automatic geo-tagged messages.
   – Vehicle tracking on request or programmed poll.
   – GPS road guidance with dedicated cartography.
   – Destination points sent from the command post.
   – Cartographic viewing of vehicules.
   – Tracks recording and history.
   – Messages flow recording and history.
   – Full screen display (map and the position).

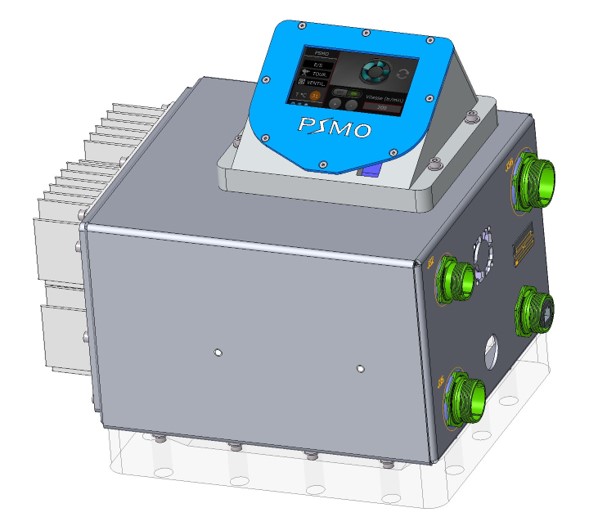

P.S.MO - POWER SYSTEM MONITORING

NSE (Gicat member)

The fulfilment of your mission, our priority !
NSE provides a technology demonstrator in order to help you anticipating and preparing your mission. With a real- time visualization of their availability and reliability thanks to a supervision interface, the P.S.MO, a true decision-making tool, will help you to adapt the energy consumption of your different on-board systems; according to your needs and the environment of your different missions

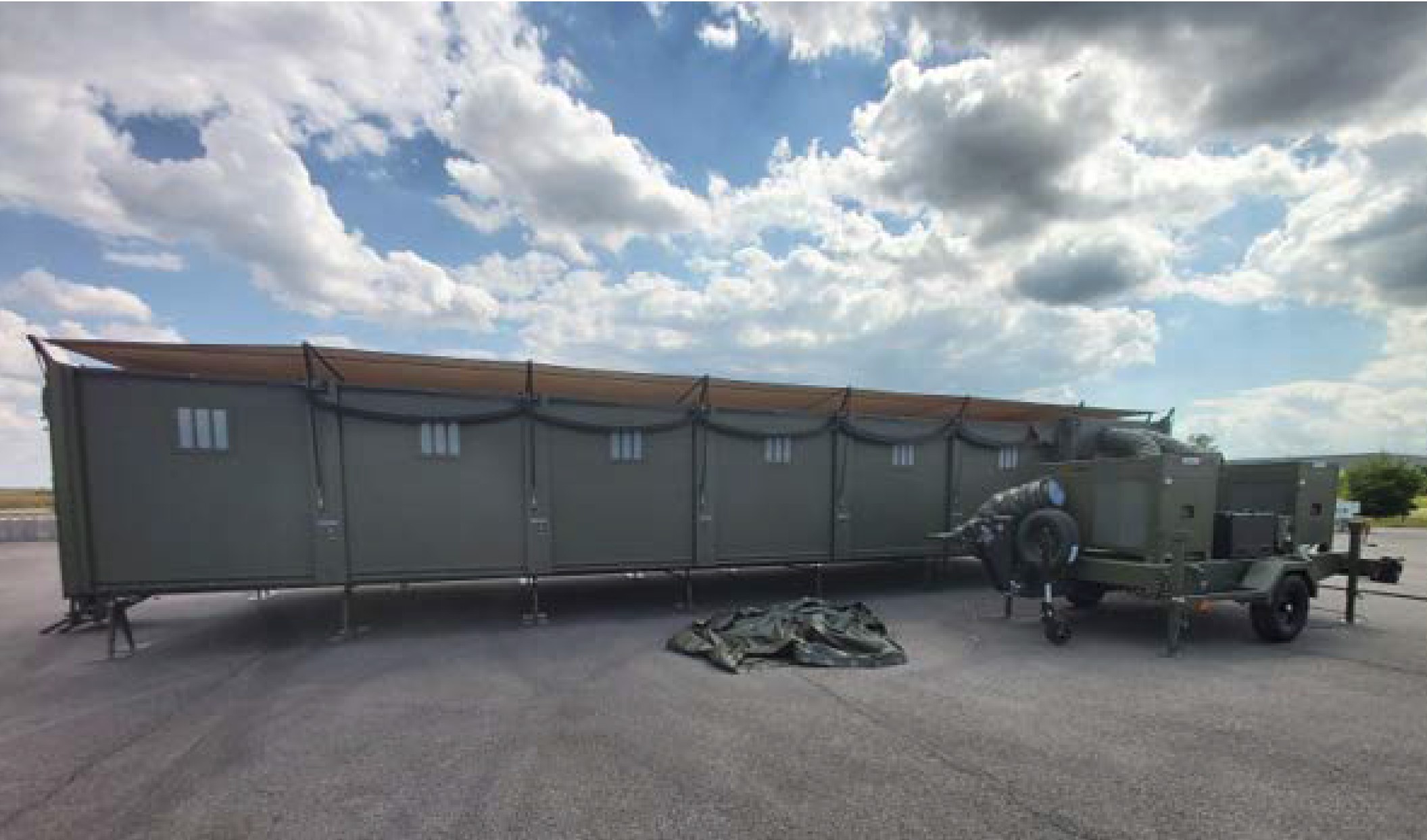

COLPRO Emmergency Operation Center

CEGELEC DEFENSE (Gicat member)

The COLPRO EOC derives from a military stock C2 shelter developped by Cegelec Défense. Designed to accomodate 20 operators with comprehensive C4ISR communication and information equipment, the EOC provides also an optional integral CBRN filtration for the collective protection of personnel. Retracted in a 20ft ISO container for transportation by a single truck and a utility trailer, the EOC offers a deployed working, connected and climatized working space of 80 m2. It offers full connections to grid networks.

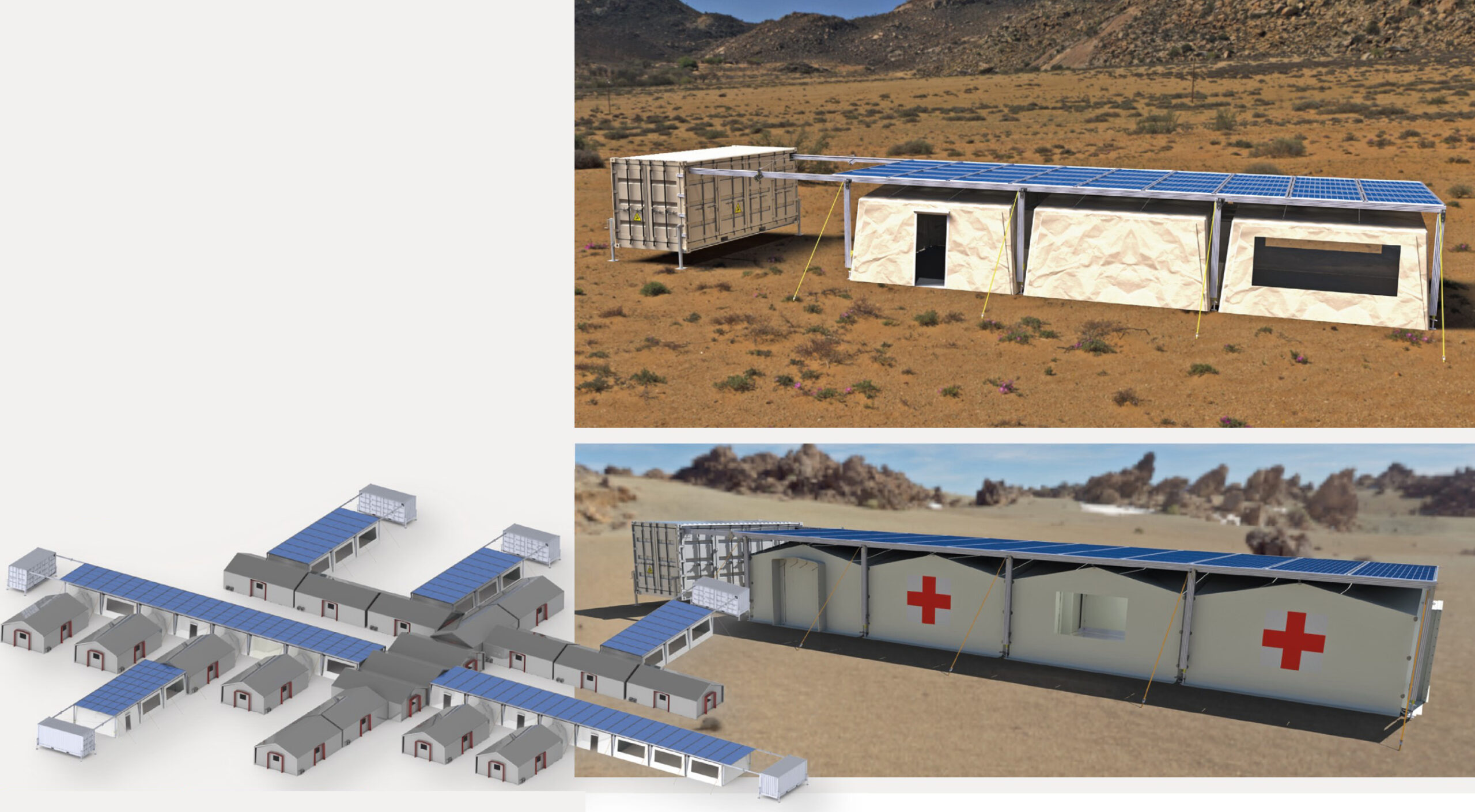

CONTAINWATT®

MONKILOWATT (Gicat member)

Monkilowatt has developed Containwatt, an autonomous shelter for Forward Operating Base in severe service conditions. The shelter can be used in many ways such as command posts, advanced medical posts, or any other human activity. Up to 75m² the whole system, meaning shelter,
battery AND solar panels, fi ts in a KC20. Shelters can be tents or semi-rigid. As solar panels are deployed above the shelters, no more space is needed. It takes one day for two people to set up the Containwatt on an unprepared floor. Every tool needed for the set up can be find in the KC20. Containwatt takes part in the autonomy of area it supplies, reducing fuel consumption for the surrounding generators (when part of a network), improving the resilience for the whole Forward Operating Base power plant, free of CO², free of noise (discretion).

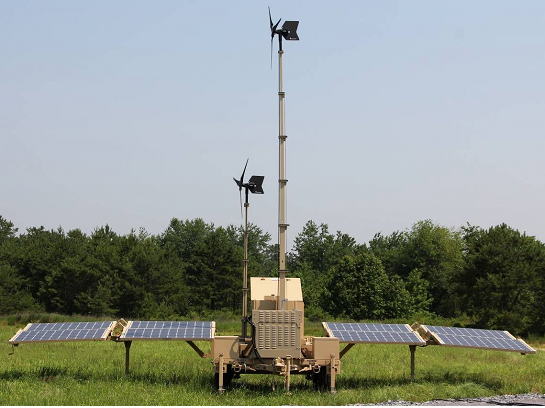

HEATS

BREN-TRONICS (Gicat member)

The Hybrid Energy Advanced Trailer System (HEATS) is an arrangement of high energy battery systems with quickly deployable renewable energy devices and central power on a towable trailer. With its 8 large solar panels, 2 wind turbines and 6 high-capacity Li-ion batteries, the HEATS system can store up to 20 kWh of energy. The system is also equipped with a 3.8 kW generator that allows the batteries to be recharged only when necessary, drastically reducing the need for fuel.
The system can provide AC outputs (110/220 V), DC outputs (12/24 V) and 5 USB ports.

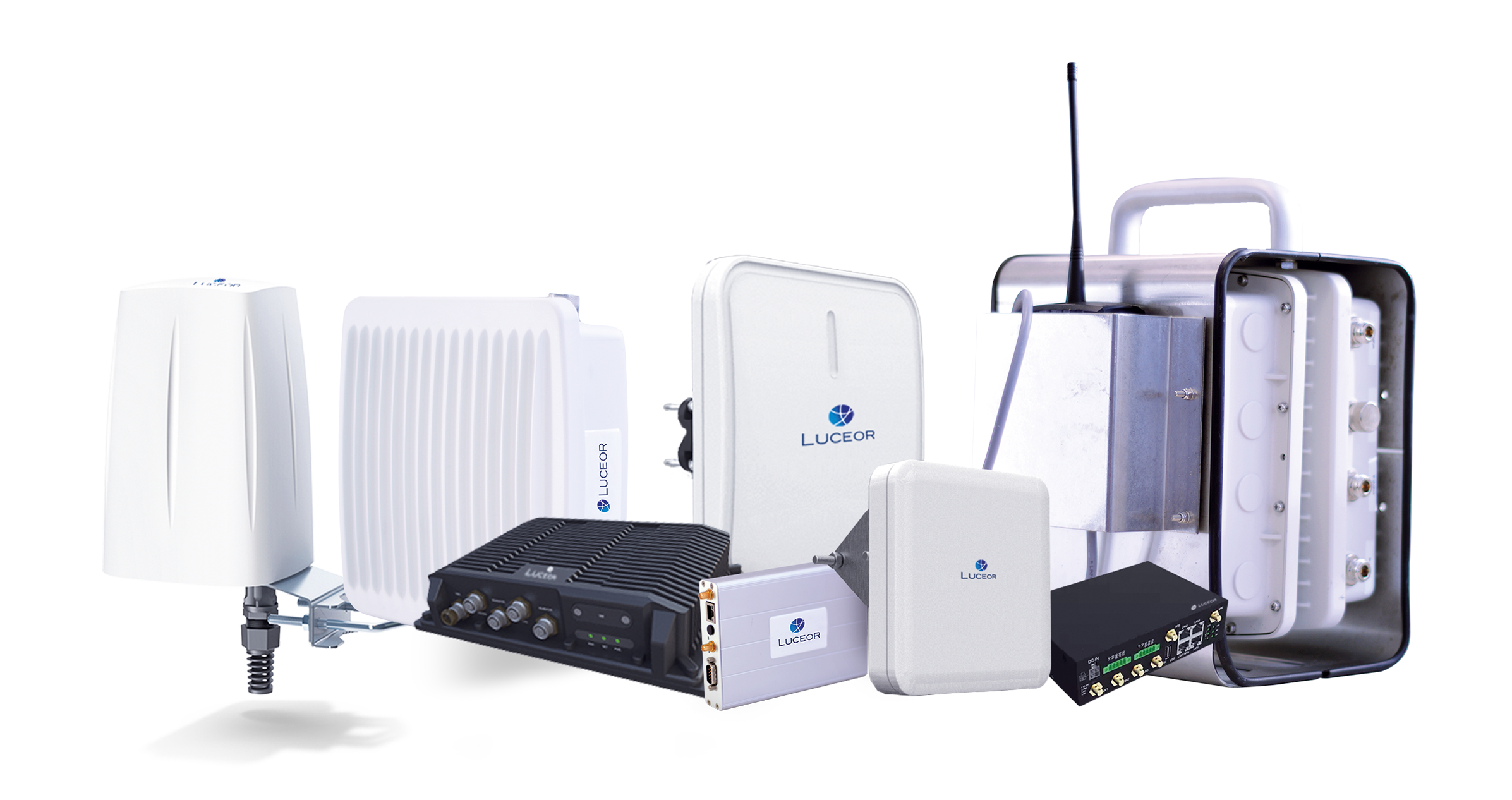

AWS-N4G

LUCEOR

GigaMesh-AWS is the ultimate Mesh router for deploying temporary networks. Its fast mounting brackets and intelligent battery modules allow easy installation anywhere.
The built-in battery powers the GigaMesh-AWS for over 15 hours and can also power third party equipment such as a camera. That’s 100% autonomy! With combined 5G/LTE and Wimesh radios, it supports any field use case. Its GPS module allows precise reporting on tactical maps. LUCEOR travaille avec une importante région française sur un projet de déploiement d’un réseau d’urgence en cas de catastrophe naturelle avec l’AWS-N4G .
